Technical Specifications OnexPlayer X1 Mini

AMD Ryzen 7 8840U • 8.8" 144Hz • LPDDR5X

Comprehensive technical specifications for the OnexPlayer X1 Mini 3-in-1 PC gaming handheld featuring cutting-edge AMD technology and premium components.

OnexPlayer X1 Mini Specifications

Processor AMD Ryzen 7 8840U

Base Frequency
3.3GHz
Max Boost
5.1GHz
Cores
8 Cores
Threads
16 Threads
L3 Cache
16MB
AMD Ryzen 7 8840U
AMD Radeon 780M

Graphics AMD Radeon 780M

Integrated AMD Radeon 780M graphics with RDNA 3 architecture delivers exceptional gaming performance and visual fidelity for AAA titles and demanding applications.

Architecture RDNA 3
Compute Units 12 CUs
Stream Processors 768

Display 8.8" 144Hz Screen

Size
8.8"
Resolution
2560×1600
Refresh Rate
144Hz
Aspect Ratio
16:10
Touch Points
10-Point
Viewing Angle
178°
8.8-inch 144Hz Display

Memory LPDDR5X High-Speed

16GB
Base Configuration
LPDDR5X 7500MHz
32GB
Mid Configuration
LPDDR5X 7500MHz
64GB
Max Configuration
LPDDR5X 7500MHz

Memory Features

• On-board integrated design
• 7500MHz high-speed performance
• Low power consumption
• Optimized for gaming

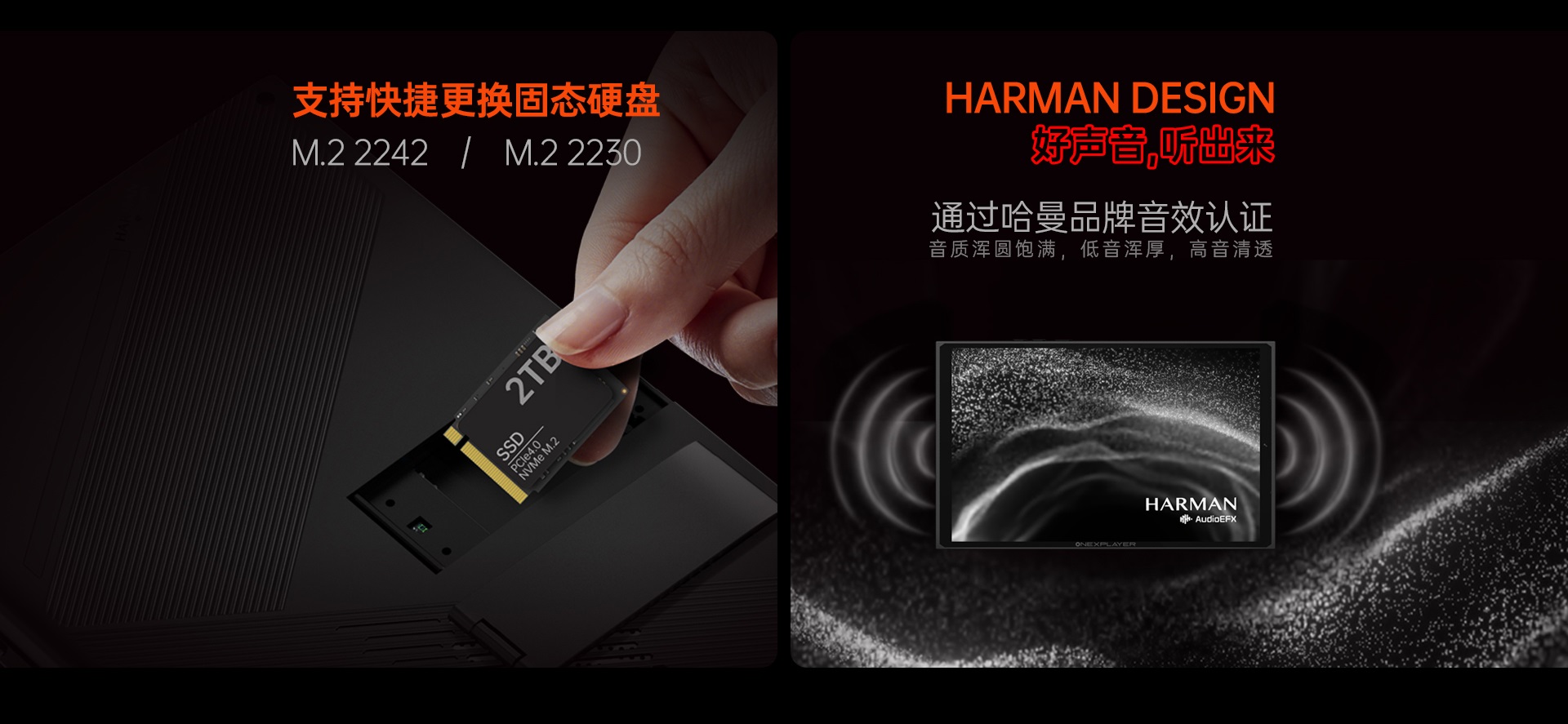

PCIe 4.0 Storage

Storage PCIe 4.0 NVMe SSD

Capacity Options
1TB / 2TB
Interface
M.2 PCIe 4.0

Storage Features

  • • NVMe protocol for maximum speed
  • • Support for external storage
  • • Micro SD card expansion
  • • USB storage compatibility

Magnetic Keyboard QWERTY Standard

Keyboard Features

  • • QWERTY standard layout design
  • • Magnetic attachment system
  • • Seamless connection and disconnection
  • • Optimized for productivity tasks
  • • Compact and portable design

3-in-1 Versatility

Transform your device instantly between handheld gaming, desktop productivity, and tablet entertainment modes with the magnetic keyboard system.

Magnetic Keyboard

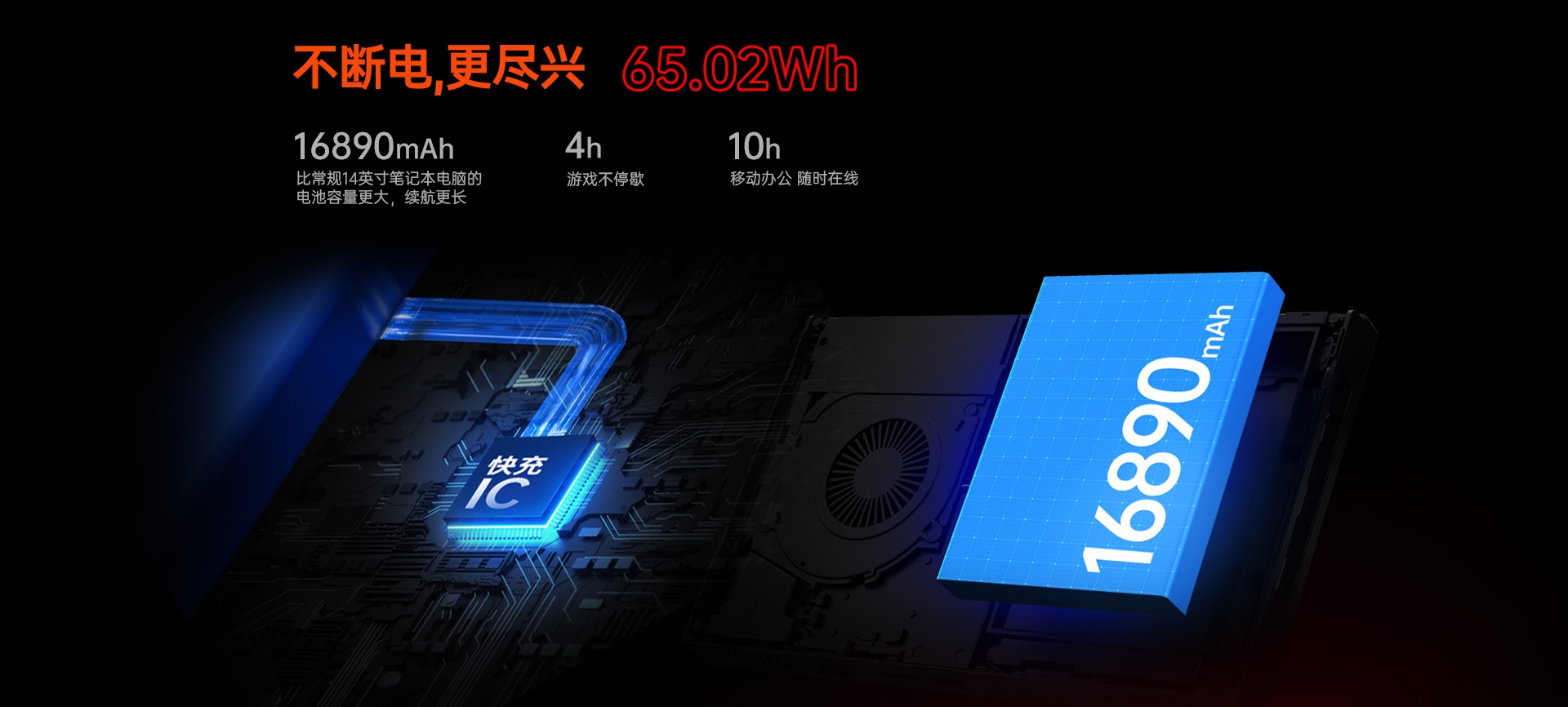

Battery & Power 16890mAh Capacity

Battery Specifications

Capacity 16890mAh
Energy 65.02Wh
Voltage 3.85V
Design Ultra-thin

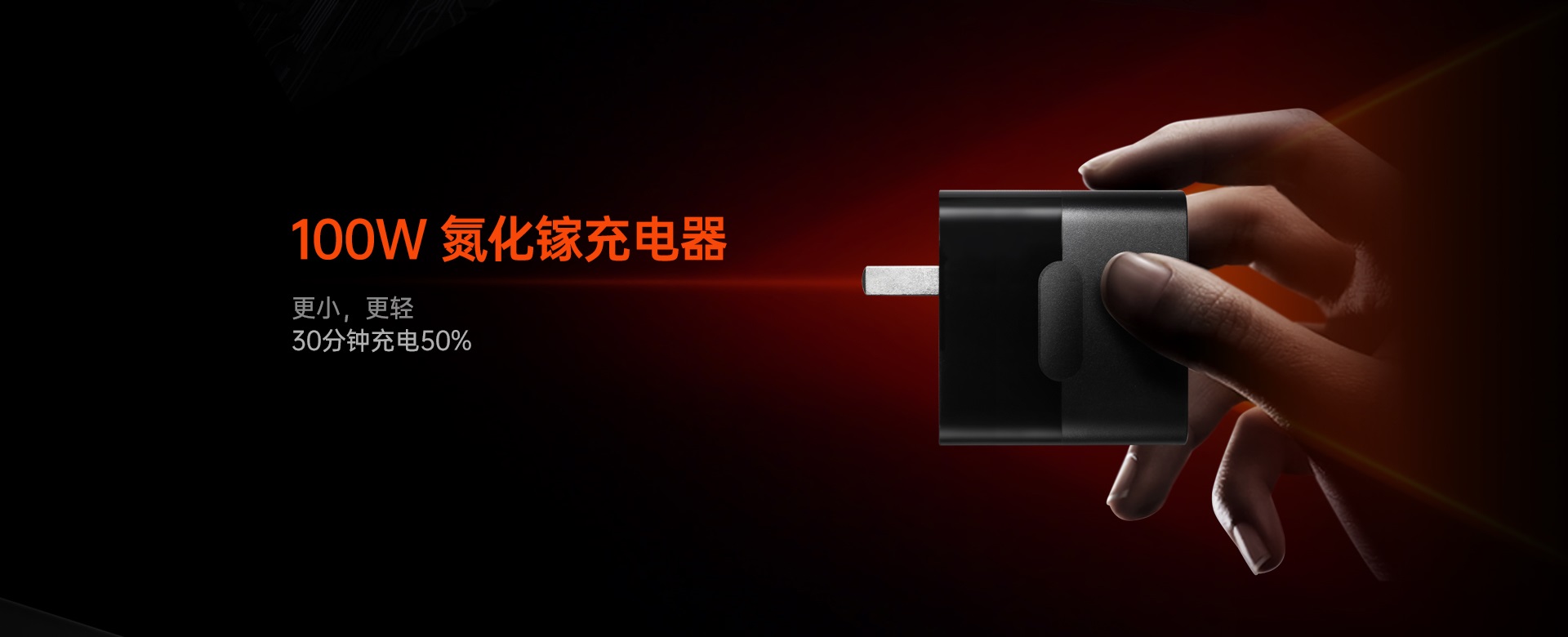

Power Features

  • • Extended gaming sessions
  • • All-day productivity use
  • • Fast charging support
  • • Intelligent power management
  • • Low power consumption design
  • • Battery optimization modes

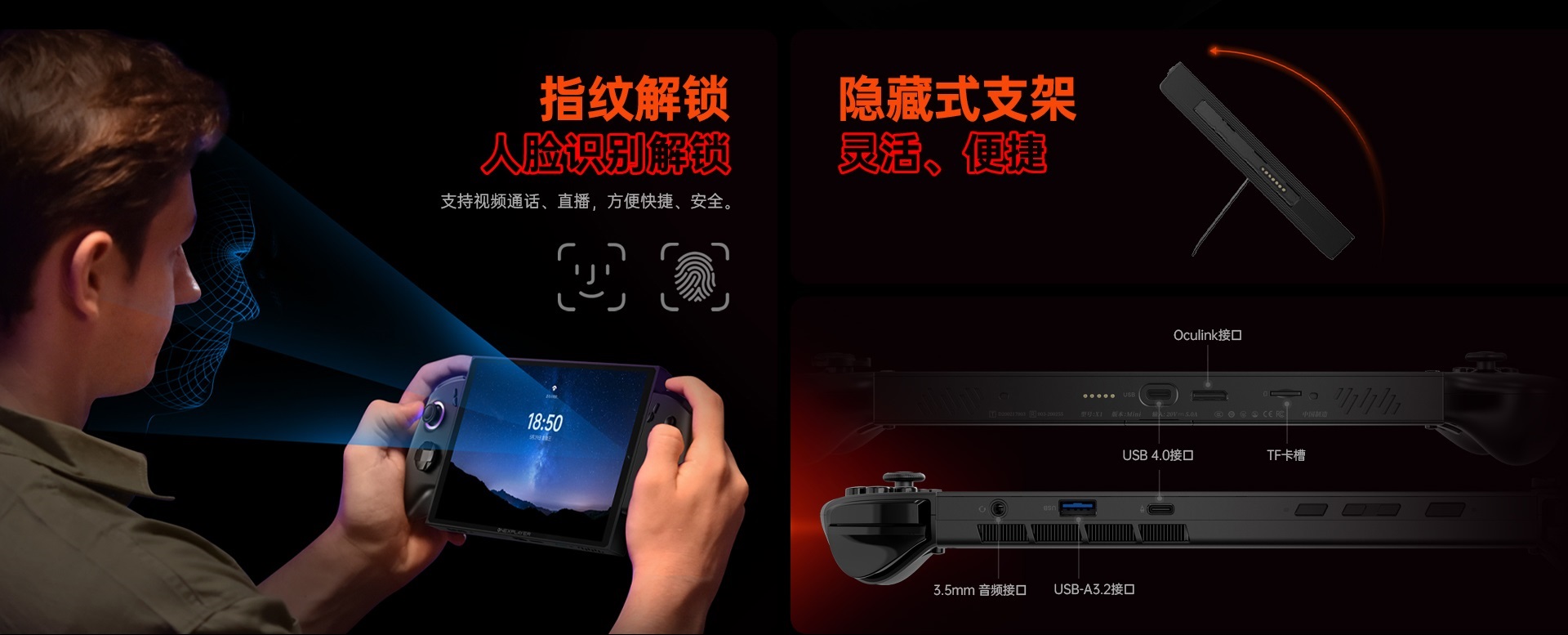

Connectivity USB-C 4.0 + Oculink

USB-C 4.0
2 Ports
Full function support
Oculink
1 Port
External GPU support
USB-A 3.0
1 Port
Legacy device support
Micro SD
1 Slot
Storage expansion
3.5mm Audio
1 Port
Headphone/microphone
Wi-Fi 6E
Wireless
High-speed connectivity
Windows 11

Operating System Windows 11

Pre-installed Windows 11

  • • Genuine Windows 11 license
  • • Full PC compatibility
  • • Access to Microsoft Store
  • • DirectX 12 Ultimate support
  • • Xbox Game Pass integration
  • • Touch-optimized interface
  • • Tablet mode support

Dimensions & Weight Compact Design

210.6mm
Length
129.2mm
Width
20mm
Height
710g
Weight (Main Unit)

Design Features

• Ultra-portable form factor
• Ergonomic grip design
• Premium build quality
• Optimized weight distribution

Technical Specifications Notice

* Data Disclaimer: The memory capacity, dimensions, thickness, weight, screen opening angle and other data on this page are theoretical values. The actual specifications are related to objective factors such as measurement tools, personnel, and environment, and errors may occur. If there are errors, they are normal phenomena. Please refer to actual measurements.
