Technical Specifications OnexPlayer X1

Intel® Core™ Ultra 7 155H • 10.95" 120Hz Display

Comprehensive technical specifications for the ultimate 3-in-1 gaming and productivity device powered by Intel Core Ultra processors.

OnexPlayer X1 Intel Core Ultra Specifications

Processor
Intel® Core™ Ultra 7 155H

Experience next-generation performance with Intel's revolutionary Core Ultra 7 155H processor featuring advanced AI acceleration, enhanced graphics, and exceptional power efficiency.

1.4GHz
Base Frequency
4.8GHz
Max Turbo Frequency
14 Cores
Core Count
22 Threads
Thread Count
24MB
Smart Cache
Intel Core Ultra 7 155H Processor
LPDDR5X Memory

Memory
LPDDR5X High-Speed

Ultra-fast LPDDR5X memory integrated directly on the motherboard for maximum performance and efficiency. Available in multiple configurations to suit your needs.

32GB Configuration LPDDR5X 7467MHz
Integrated on motherboard
64GB Configuration LPDDR5X 7467MHz
Integrated on motherboard

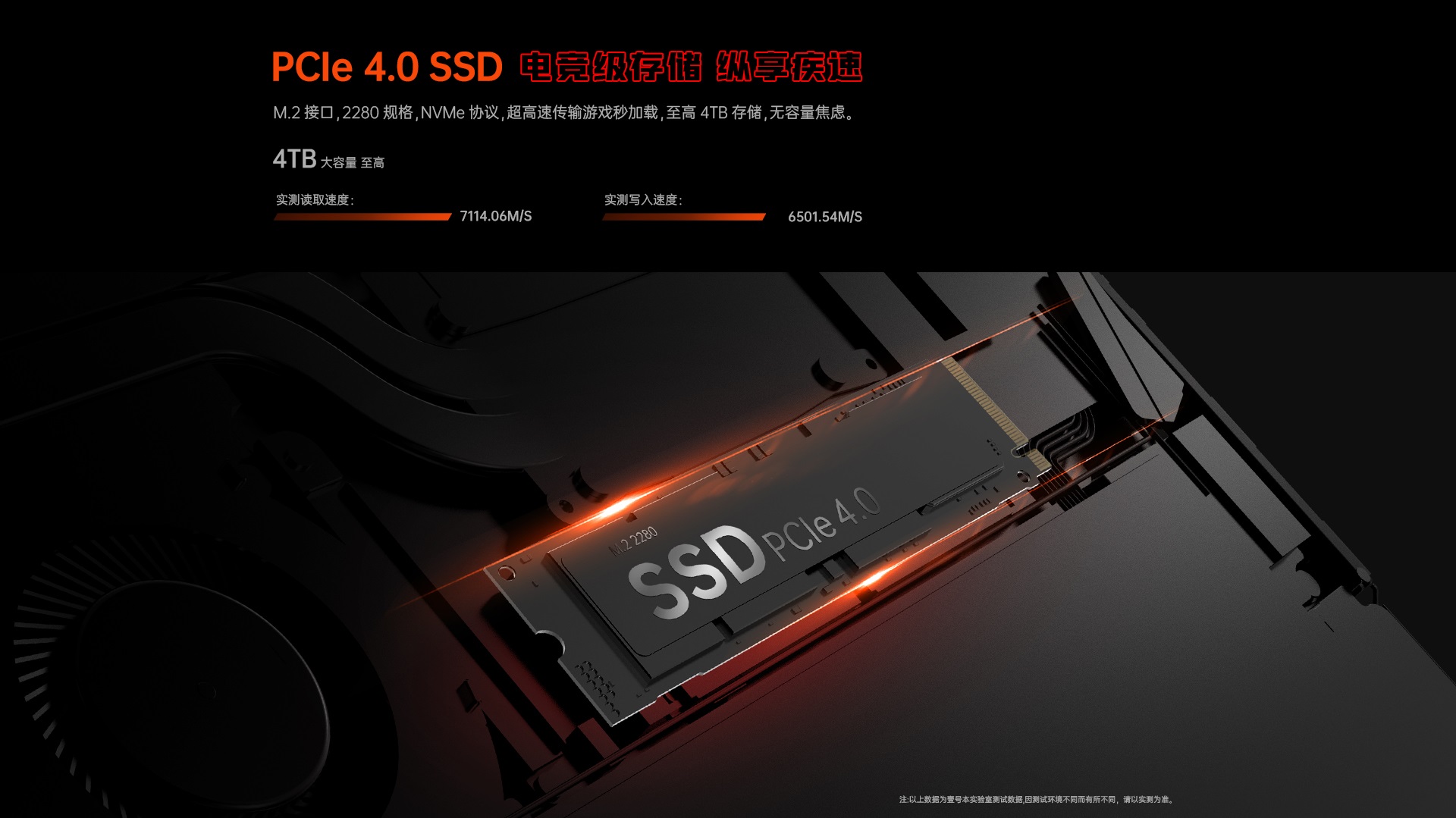

Storage
PCIe 4.0 NVMe SSD

Lightning-fast M.2 PCIe 4.0 NVMe SSD storage with multiple capacity options. Supports external drive read/write for expanded storage capabilities.

1TB Option M.2 PCIe 4.0
2TB Option M.2 PCIe 4.0
4TB Option M.2 PCIe 4.0
External Drive Support: Read/write compatible with external storage devices
PCIe 4.0 NVMe SSD Storage
Intel Arc Graphics

Graphics
Intel® Arc™ Graphics

Advanced Intel Arc integrated graphics deliver exceptional gaming performance and visual fidelity with hardware-accelerated ray tracing and AI-enhanced features.

Graphics Architecture Intel® Arc™
Ray Tracing Support Hardware Accelerated
AI Enhancement XeSS Technology
DirectX Support DirectX 12 Ultimate

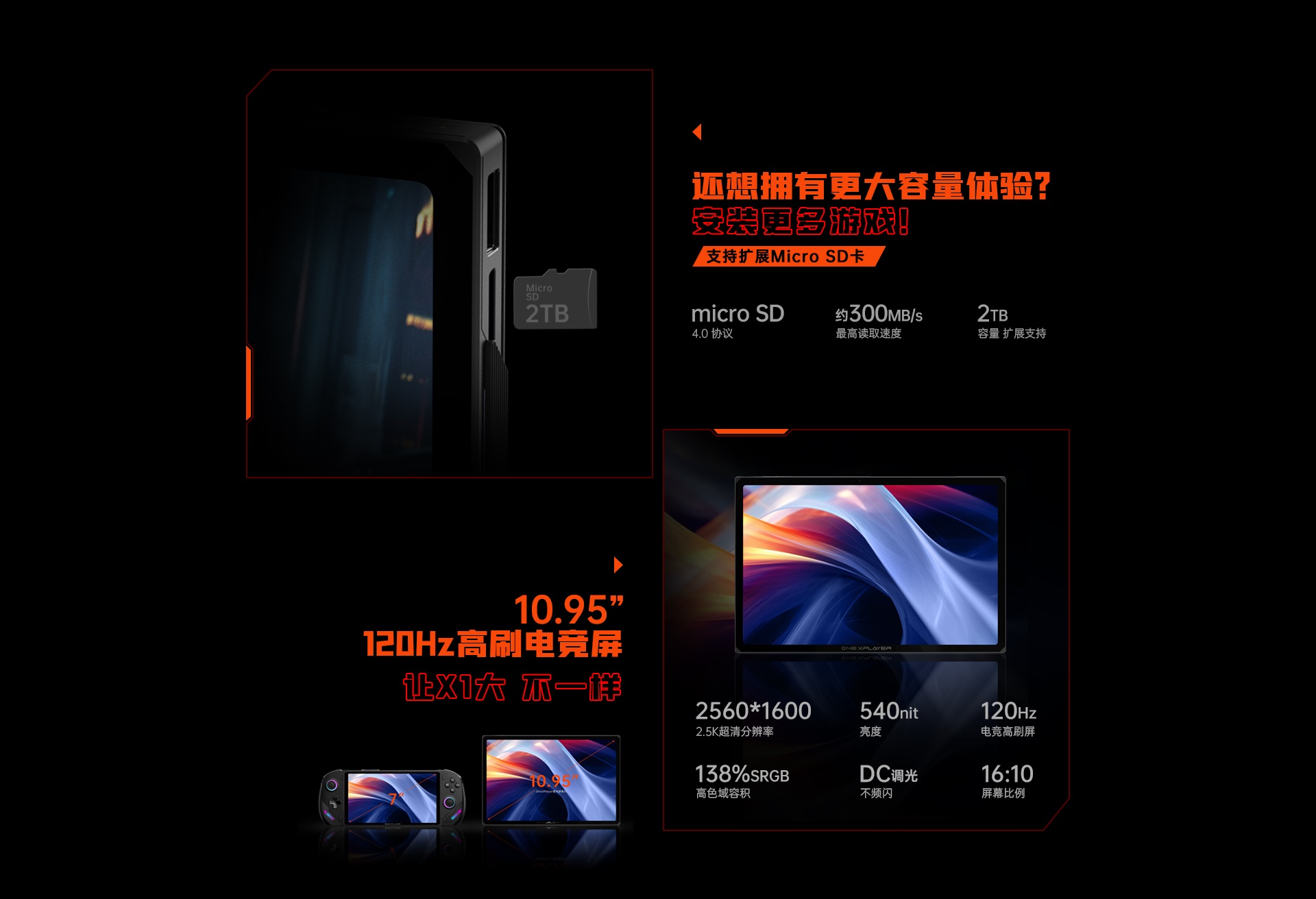

Display
10.95" Full HD+ 120Hz

Immersive 10.95-inch Full HD+ display with 120Hz refresh rate, wide viewing angles, and advanced touch technology for the ultimate visual experience.

10.95"
Screen Size
2560×1600
Resolution
178°
Viewing Angle
16:10
Aspect Ratio
120Hz
Refresh Rate
10-Point
Multi-Touch
Advanced Features: Full lamination technology, low reflection coating
10.95 inch 120Hz Display
Magnetic QWERTY Keyboard

Magnetic Keyboard
QWERTY Standard Design

Professional QWERTY standard keyboard with magnetic attachment system for seamless productivity. Transform your gaming handheld into a full productivity powerhouse.

QWERTY Standard Layout

Full-size keys with optimal spacing for comfortable typing and professional productivity tasks

Magnetic Attachment System

Secure magnetic connection with instant attach/detach functionality for maximum convenience

Battery & Power
Ultra-Thin 16890mAh

Advanced ultra-thin battery design provides exceptional runtime while maintaining the device's sleek profile. Perfect for extended gaming sessions and all-day productivity.

16890mAh
Battery Capacity
65.02Wh
Energy Rating
3.85V
Operating Voltage
Ultra-Thin Battery System

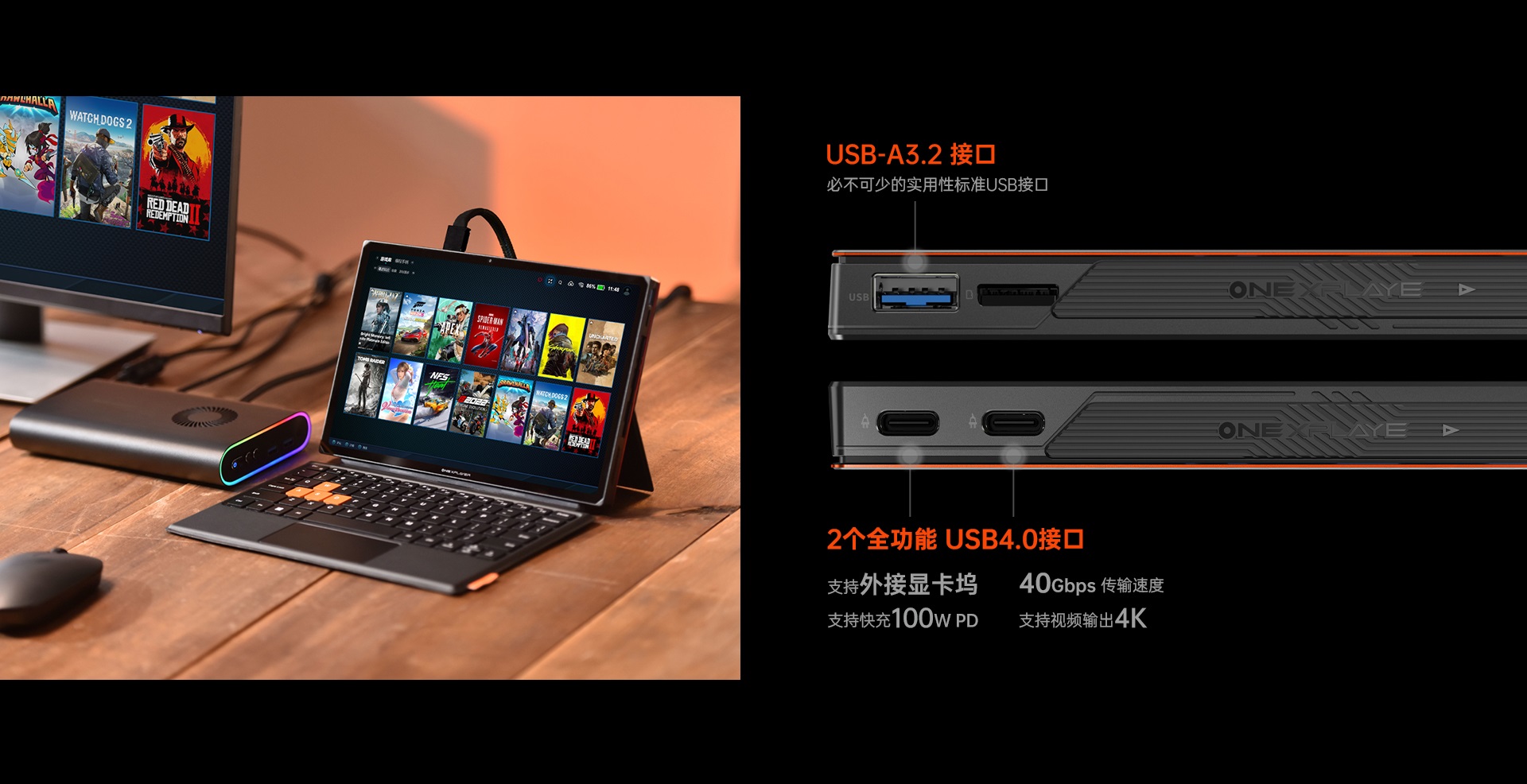

Connectivity & Ports
Future-Ready Expandability

Comprehensive connectivity options including USB-C 4.0, Oculink, and more for maximum expandability and compatibility with all your devices.

USB-C 4.0
×2 Ports
40Gbps Transfer Speed

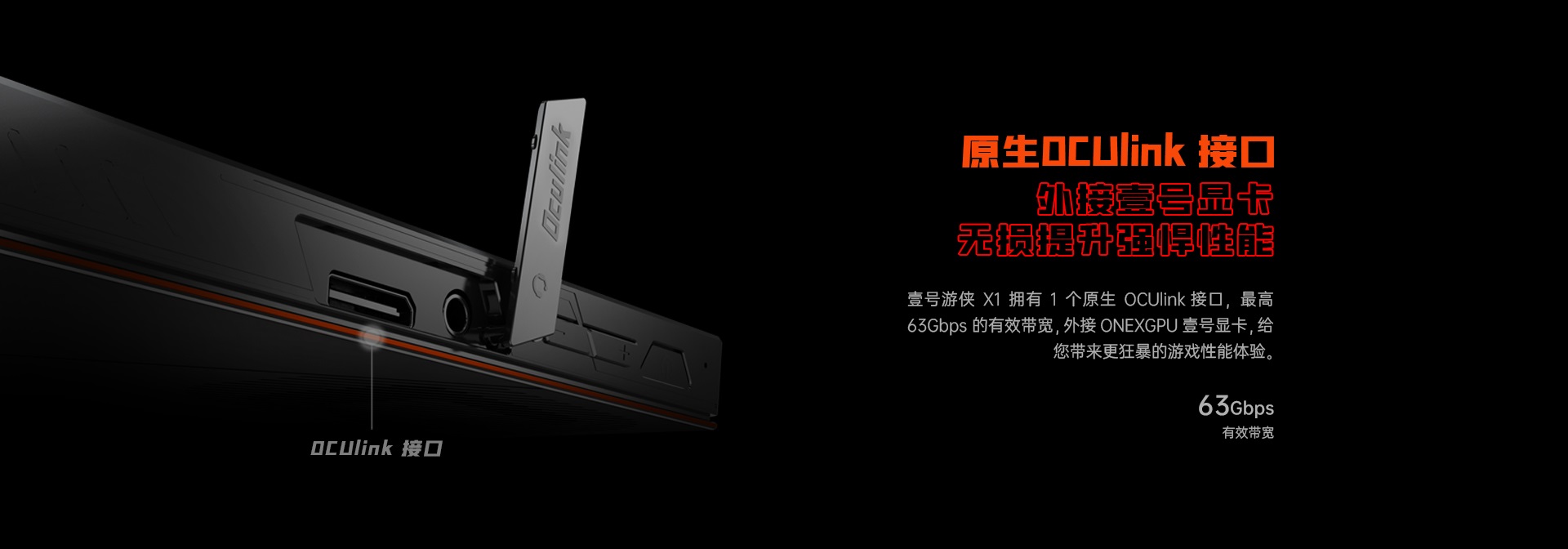

Oculink
×1 Port
External GPU Support
USB-A 3.0
×1 Port
Legacy Device Support
Micro SD
×1 Slot
Expandable Storage
3.5mm Audio
×1 Jack
Headphone/Microphone
Windows 11
Pre-installed
Genuine License
Compact Design Dimensions

Dimensions & Weight
Compact Design

Meticulously engineered dimensions balance portability with functionality, delivering a premium handheld gaming experience without compromise.

252mm
Length
163mm
Width
13mm
Height
789g
Weight (Main Unit)

Ready to Experience Intel Core Ultra?

Discover the ultimate 3-in-1 gaming and productivity solution with the OnexPlayer X1 Intel Core Ultra Edition. Transform how you game, work, and play with next-generation Intel technology.

*Data Disclaimer: Memory capacity, dimensions, weight, screen opening angle and other data on this page are theoretical values. Actual specifications may vary due to measurement tools, personnel, environment and other objective factors. Any deviation is normal. Please refer to actual measurements.
